Visit HERMEQ GermanyBiaxial Geogrid
Frequently Bought Together

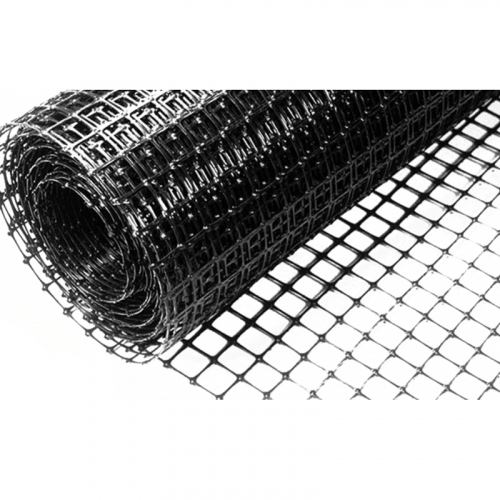

Biaxial Geogrids provide omni axial support to granular sub bases and areas of weak or varied soils. These biaxial geogrids ensure any problems with pavements are solved by reinforcing capping layers and railway ballasts. These layers are reinforced with granular particles compacted over the grids, which penetrate and project through the apertures to create a strong interlock. An exceptionally minimal maintenance system the biaxial geotextile is a cost-effective solution for pavement problems.
Roll Length: 20kN: 50m, 30kN: 40m, 40kN: 30m | Width: 4m
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Laying pavements and roads can be a long-term project that requires constant maintenance and precision to create strong roads. Soils can often be variable or weak which can affect road use long term. To help solve these problems the Biaxial Geotextile provides Omni-axial support and reinforcement to these weak or viable soils. They also provide reinforcement to capping layers, railway ballast and granular sub bases.
The Biaxial Geotextiles work by compacting granular particles over the grids, which partially penetrate and project through the apertures to create a tough, durable, and positive interlock. The interlocking mechanism creates a load dispersal effect which increases the shearing resistance in the soil, improving the compaction and allowing the sub base thickness to decrease, which in turn reduces the time and cost of construction.
A very low maintenance system the biaxial geotextile is a cost-effective solution to pavement problems and can be used on:
- Construction haul roads
- Paved and unpaved roads
- Railways and ports
- Working platforms on weak sub-soils
- Parking and paved areas
- Multi-layer applications
- Piling platforms
Product Specification - 20kN/30kN/40kN
Roll Length: 20kN: 50m | 30kN: 50m | 40kN: 30m | Width: 4m
|
Tensile Strength (MD) Tensile Strength (TD) |
EN ISO 10319 | 20kN/m² | 30kN/m² | 40kN/m² |
|
Tensile Load (2% strain) (MD) Tensile Load (2% strain) (TD) |
EN ISO 10319 | 7kN/m² | 10.5kN/m² | 14kN/m² |
|
Tensile Load (5% strain) (MD) Tensile Load (5% strain) (TD) |
EN ISO 10319 | 14kN/m² | 21kN/m² | 28kN/m² |
| Junction Efficiency | Â | 95% |
| Aperture Opening Size Length | Â | 40mm | 40mm | 38mm |
| Aperture Opening Size Width | Â | 40mm | 40mm | 38mm |
Â
HERMEQ stock a wide-range of Geotechnics, Geotextiles, Geomembranes & Root Barriers conforming to all required safety specifications and regulations.
