Electrical Warning Detection Tape

Name: Electrical Warning Detection Tape
SKU: CA750043
Price: 42.07 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

CA750043

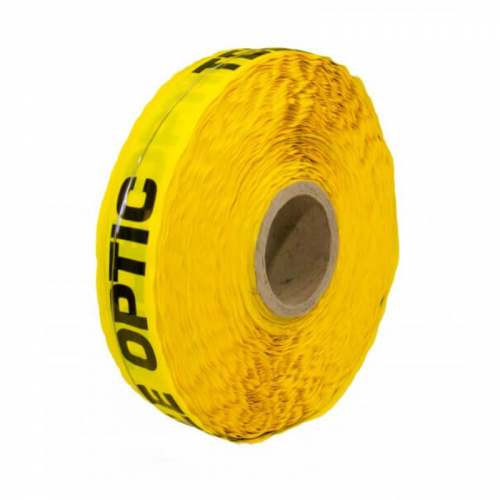

The Warning Detection Tape is a bright and bold non-adhesive tape that provides a visible early warning and identification of a buried service such as an underground utility cable. With a stainless-steel trace wire running through the tape, it can be detected from the surface using cable avoidance tools such as CAT and genny before excavation. Used to mark electricity, water, gas, and telecom locations. Tape length is 365m except for WPD which is 250m.

As low as € 34,77 € 42,07

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

A brightly coloured and bold visual non-adhesive tape this Warning Detection tape gives a clear visible early warning and identification of buried underground work such as utility cables for internet etc. With steel trace wires running through the tape, they are joined together using crimps. Once joined together this supports signal tracing along the line of length of the trench.

The Warning Detection Tape is usually installed with a specific distance in mind above the service line and is made from high-quality durable polymers which are highly resistant to most soil types.

Product Uses

The Electrical Warning Detection Tape is used by Generic Electric services, SSE (SSE Energy Services), ENW (Electricity North West), WPD (Western Power Distribution) and SPEN (SP Energy Networks).

Product Features:

- Clear detection of location prior to excavation
- Bright colours and bold text for clear visual warning
- Resistant to most soil types, including alkaline and acid soils
- Specified and approved by DNOs

Note: A Minimum Order Quantity of 140 is required for all tapes, except for WPD which requires 280.

Product Dimensions

Product	Generic	SSE	ENW	WPD	SPEN
Length	365m	365m	365m	250m	365m
Width	150m	150m	150m	150m	150m

Physical Properties

Dimension	Test Method	Specification
Length	Tape Measure	As Specified
Width	Tape Measure	As Specified
Thickness	Vernier	0.1mm (+/- 0.015mm)
Wire Diameter	N/A	As Specified

Product Performance

Property	Test Method	Result
Tensile Strength	BS EN ISO 527:1996	Min 15 MN/m²
Elongation @ break	BS EN ISO 527	>400%

HERMEQ stock a wide-range of Underground Service Protection, Groundworks, Ground Mats & Road Plates conforming to all required safety specifications and regulations.
