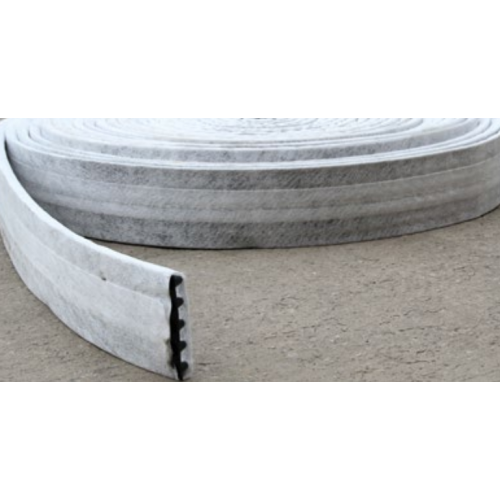

Techdrain FIN25 is a 25mm High-Density Polyethylene (HDPE) cuspated drainage board fully wrapped with a PP geotextile filter/separator.

The Techdrain FIN25 geocomposite ventformer has been designed to provide a passive venting system for gasses and liquids. Techdrain FIN25 is used extensively as a TYPE 5 fin drain in highway drainage.

As low as € 259,60 € 314,12

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Techdrain FIN25 is a 25mm HDPE cuspated drainage board fully wrapped with a PP geotextile filter/separator. Techdrain FIN25 geocomposite ventformer has been designed to provide a passive venting system for gasses and liquids. Techdrain FIN25 is used extensively as a TYPE 5 fin drain in highway drainage.

Mechanical Properties	Test Method	Units	Techdrain Fin25
Static Puncture Strength (CBR)	BS EN ISO 12236	kN	3
Tensile Strength (md)	BS EN ISO 10319	kN/m	20
Tensile Strength (cmd)	BS EN ISO 10319	kN/m	20
In-Plane Flow Capacity Using Hard/Soft Platens (i=1.0) @20kPa (i=1.0) @100kPa (i=1.0) @200kPa	EN ISO 12958	I/s/m width	7 6 5
