Heavy Duty Raise Arm Barrier spans an area of up to 9.0 metres.

As low as € 1.040,00 € 1.258,40

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

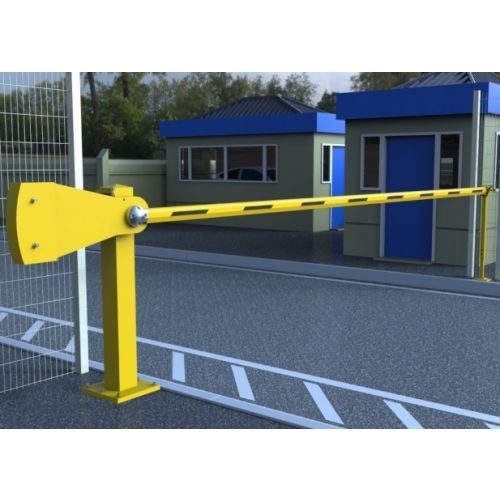

The Heavy Duty Raise Arm Barrier spans an area of up to 9.0 metres. The pivot assembly is made of aluminium box section, the zinc plated shaft pivots on two heavy-duty stainless steel bearing blocks.

The design of the Heavy Duty Raise Arm Barrier incorporates a locking mechanism, allowing you to fix the barrier in the raised or lowered position prior to applying the padlock. A counter balanced fish tail weight is fine tuned for ease of operation.

The Heavy Duty Raise Arm Barrier comes complete with a lockable end rest, padlock and keys.

Heavy Duty Manual Raise Arm Barrier Specification:

CE Approved
Arm Length: Maximum Span - 9.0m plain pole only | 8.0m Bottom Skirt
Colour: Zinc Plated & Polyester Powder Coated
Material: Steel & Aluminium
Counter Weights: Steel PPC Counterweights

Product Dimensions

Unit Weight: Pedestal, and pole arm: 89Kg (Excludes Counterweights)
Dimensions: Pedestal - 1110mm x 400mm x 520mm & Pole - 123mm x 84mm OVAL
Fixings: M16 anchor shield bolts included/M12 for End Rest
Skirting Options: Max 8 Metres
