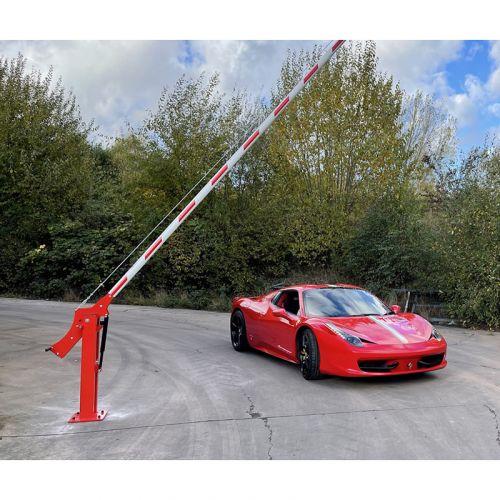

Manual Raise Arm Barrier - Standard

Name: Manual Raise Arm Barrier - Standard
SKU: PK2344
Price: 1179.75 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

PK2344

Standard Manual Raise Arm Barrier is a low maintenance, cost effective way of manually controlling access to unauthorised areas. Manual rise arm barriers are a very easy product to use and have many features as standard designed to assist the operator. Typically used in commercial applications the manual barriers are very popular.

As low as € 975,00 € 1.179,75

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

The pivot assembly is made of an aluminium box section, the zinc plated shaft pivots on two heavy-duty stainless steel bearing blocks.

The design of the standard manual raise arm barrier incorporates a locking mechanism, allowing you to fix the barrier in the raised or lowered position prior to applying the padlock. A counter balanced fish tail weight is fine tuned for ease of operation.

The standard manual raise arm barrier comes complete with a lockable end rest, padlock and keys.

Safe & Secure - As standard the manual barriers are able to be locked in the open position as well as closed. Although controlled by the user there are rubber stops to cushion the end of travel.

Aluminium arm, finished in either alternate red and white or alternate yellow and black vinyl hatching as standard (other colours available).

Standard Manual Raise Arm Barrier Specification

CE Approved
Arm Length: Maximum Span - 7.0m plain pole only | 6.0m Bottom Skirt
Colour: Zinc Plated & Polyester Powder Coated
Material: Steel & Aluminium
Counter Weights: Steel PPC Counterweights
Unit Weight: Pedestal, and pole arm: 79Kg (Excludes Counterweights)
Dimensions: Pedestal - 1110mm x 444mm x 300mm & Pole - 94mm x 64mm OVAL
Fixings: M16 anchor shield bolts included/M12 for End Rest
Skirting Options: Max 6 Metres
