In Lock Concrete Anchor

Name: In Lock Concrete Anchor
SKU: WO737742
Price: 71.56 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

WO737742

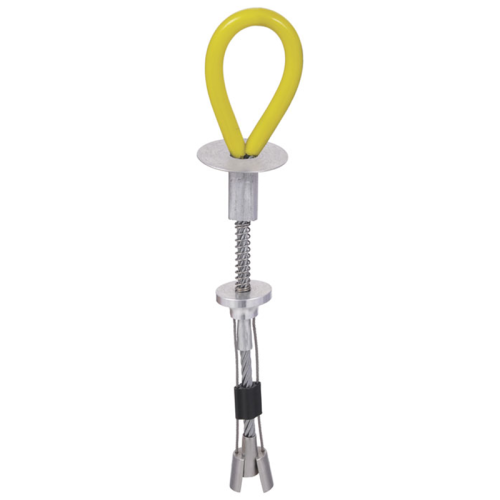

In Lock Concrete Anchor designed to be quickly installed in concrete with a pressure button that wedges the anchor point into the host structure.

€ 59,14 € 71,56

Quickest Available Delivery: Up To 2 Working Days Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Features:

Quick Installation: The use of a pressure button to wedge the anchor point into the concrete host structure suggests a quick and efficient installation process. This can be advantageous in situations where time is a critical factor, such as temporary worksites or emergency situations.
In Lock Mechanism: Refers to the mechanism by which the anchor point secures itself within the concrete.
Concrete Compatibility: Ensure that the anchor point is suitable for the type of concrete in which it will be installed. Different concrete compositions or conditions may require specific anchors or installation techniques.
Single-Person Application: If the anchor is designed for a single-person application, it should have a specified load capacity that meets safety standards and regulations for fall protection. The load capacity is typically designed to support the weight of one individual.
Pressure Button Design: Understand the design and functionality of the pressure button. This component should be robust and reliable to ensure a secure wedge into the concrete host structure. Regular testing and quality control can verify the effectiveness of this mechanism.

Specifications:

Size: 18mm-19mm x 110mm
Resistance: 12 kN
Minimum Breaking Strength: 15 kN
Conforms to BS EN 795 Type B
