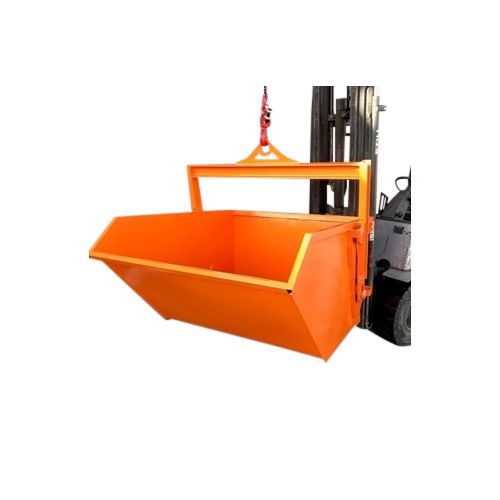

Boat Skip - Self-Dumping

Name: Boat Skip - Self-Dumping
SKU: IA3008
Price: 1337.05 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

IA3008

Crane / Chain liftable boat skip for muck & waste removal. Our Boat Skips include a specific self-dumping system for general muck and waste removal. These high-quality skips perform efficiently and safely as they are lifted, and empty automatically without the need for assistance. This feature eliminates the risk of danger to the personnel or operatives alike. Robust manufacture to suit the condition and environment in which the skips work.

As low as € 1.105,00 € 1.337,05

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Size	Capacity	Weight	Overall Height	Lip Height	Body Length	Body Width	Body Height
500	1000kg	100kg	1080mm	380mm	1280mm	980mm	600mm
1000	2000kg	230kg	1360mm	400mm	1680mm	1280mm	860mm
1500	3000kg	300kg	1370mm	640mm	1700mm	1340mm	860mm

Standard Features

Low loading height
No manual intervention needed
Bail arm rest when not in use
Integral locking bale arm once lifted
Reinforced body, sides & rear
Reinforced leading edge
Painted bright orange for safety

Operation

1. Position the lifting hook directly above the lifting point on the boat skip.
2. Secure the lifting hook into the lifting eye on attachment & ensure the hook is fully engaged.
3. Ensure the bale arm is in the locked position via the side bolt.
4. Prepare to take the load, ensuring the shark fin is engaged in its keep before carrying out the lift.
5. The attachment is now ready to carry out the lift.
6. Once the load is ready to be emptied and placed on level ground, release the side bolt to allow free movement of the bale arm.
7. Lower the bale arm to the rest plate ensuring shark fin is disengaged from keep. Then commence the straight lift of the bale arm to allow emptying movement.
8. Continue the straight lift which in turn will lift the boat skip & empty its contents.

To commence another lift, follow these steps:
9. Lower boat skip to the safe position.
10. Lift the bale arm ensuring shark fin is engaged in its keep.
11. Ensure the safety side bolt is in position.
12. The boat skip is now ready to carry out another lift.
