Palisade Network Rail Spec - Calculator

SKU
PA344332

Palisade Railway Fencing is a robust and secure solution used for various applications, from commercial and industrial sites to data centres, Network Railways, and government installations. With a security level ranging from Medium to High, this fencing system ensures excellent safety.

As one of the leading UK manufacturers of steel palisade fencing systems, HERMEQ offers both standard, BS compliant systems and the flexibility to create bespoke solutions tailored to your specific requirements.

From
€ 63,61 € 76,33
€ 82,70 € 100,07

Palisade Railway Fencing adheres to NR/L2/TRK/5NR/L2/TRK/5100/1/WP 2015 rev A, ensuring compliance with industry regulations and standards. Our commitment to quality is further demonstrated by our ISO 9001 certification, regular audits by BSI, BSE/CE, and BRE, and multiple quality control check stages.

The construction of Palisade Railway Fencing comprises carefully designed components:

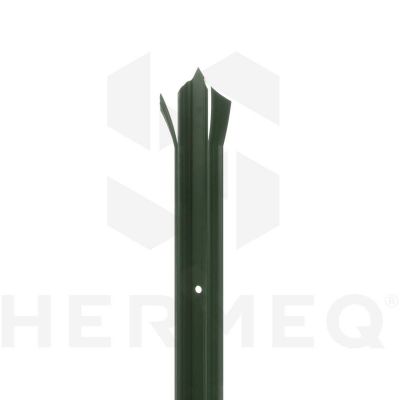

  • Pales: Made from corrugated 'W' section steel, each panel consists of 17 pales, 2.5mm thick, with holes for easy installation. The pales oversail the top by 225mm and the bottom by 150mm, and the tops are single-pointed, though they can be rounded upon request.

  • Rails: The horizontal support rails measure 45×45×6mm RSA with 10mm holes on the front face, ensuring a sturdy structure.

  • Posts: The steel posts are 102×44×2325mm RSJ with a pointed top, set at 2.75m intervals, providing reliable anchoring for the fencing system.

  • Fixings: M8×25mm mild steel bolts with a malleable head and shear nuts, as well as M12×30mm cup square bolts and M12 shear nuts, are used to secure the components in place.

Palisade Railway Fencing excels in adaptability, as it can easily follow the contours of demanding site gradients. This makes installation quick and efficient, ensuring a seamless fit to your specific location.

In addition to its functional superiority, this fencing system boasts aesthetic appeal and ease of installation. It comes at a price point that suits almost any budget, providing excellent value for your investment.

Rest assured, our steel palisade systems are manufactured to exceptionally high standards, undergoing rigorous inspections to meet all relevant requirements. They are hot dip galvanized to BS EN ISO 1461 or BS EN 10240 and can be further powder-coated in green (RAL6005) or black (RAL9005) according to BS1722-16: 2009. Should you require a specific colour, we can provide powder coating to your preference.

At HERMEQ, we supply a number of permanent fencing solutions with price calculators available including Palisade Ultra, Palisade Standard, Palisade Railway, Safe Mesh and various Domestic Railing options.
