PCH Barrier

Name: PCH Barrier
SKU: CB4144
Price: 188.47 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

CB4144

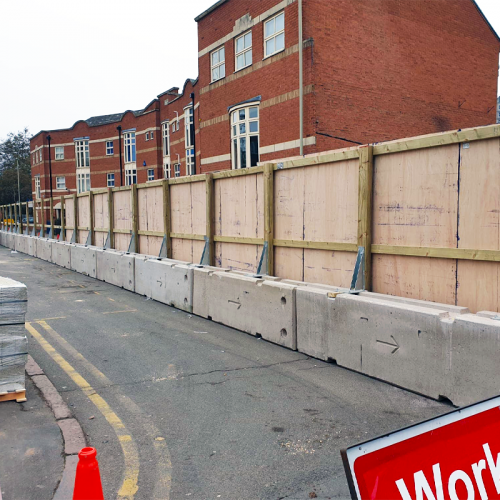

Precast Concrete TVCB (Temporary Vertical Concrete Barriers) fitted with Timber Plywood Hoarding. Each Concrete Barrier is 3150mm wide and 2400mm high once assembled the PCH Barrier is assembled.

Quickest Available Delivery: 3-4 Weeks Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

A crash-tested concrete safety and security barrier with plywood hoarding extension. These Precast Concrete Barriers are manufactured using high-strength concrete (50N/mm²).

Precast Concrete Barrier Specifications:

Overall Length: 3150mm

Modular Length: 3000mm

Width: 450mm

Height: 800mm

Weight: 2500kg

Hoarding Specifications:

Timber Board (Painted in clients colours)
1600mm high x 1200mm wide
6x3 C16 Posts
4x2 C16 Rails
x3 fixed to post using M8 x 120mm coach screw – includes angle gusset for attachment with x4 no M10 x 120mm
Thunderbolts and Washers – 18mm Hardwood throughout Plywood. Class 3 (fully rated for external use)

HERMEQ stock a wide range of Concrete Barriers, Traffic Management, Permanent Fencing & Temporary Fencing conforming to all required safety specifications and regulations.
