Sheet Piles - FKD 400/6 - KD4

Name: Sheet Piles - FKD 400/6 - KD4
SKU: TR1508
Price: 240.79 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

TR1508

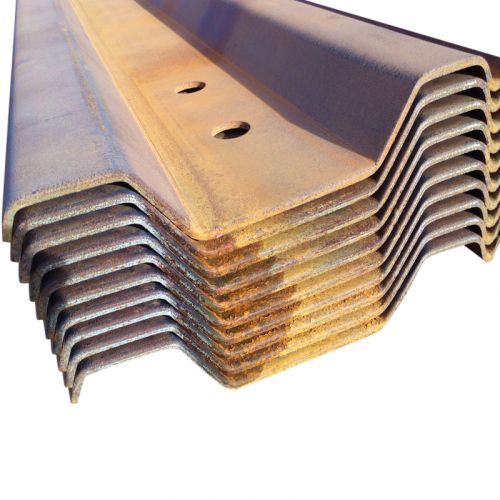

FKD 400/6 overlapping sheet piles have an effective width of 408mm and are 6mm thick. This makes them a heavy duty option when compared with our 3.5mm thick standard lap trench sheets.

As low as € 199,00 € 240,79

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Sheet piling retains soil, using steel sheets with interlocking edges. Our standard trench sheets & sheet piles are supplied in 2.4m to 6.0m lengths, although other lengths are available upon request. Sheet piles are installed in sequence to design depth along the planned excavation perimeter or seawall alignment. The interlocked sheet piles form a wall for permanent or temporary lateral earth support with reduced groundwater inflow.

Vibratory hammers are typically used to install sheet piles. If soils are too hard or dense, an impact hammer can be used to complete the installation. At certain sites where vibrations are a concern, the sheets can be hydraulically pushed into the ground.

Properties

Effective Width	408mm
Depth	50mm
Thickness	6mm
Cross sectional area per sheet	19.8cm2
Steel grade	S275JR

HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
