Visit HERMEQ GermanyV Mesh Fence Feet Locking System
Frequently Bought Together

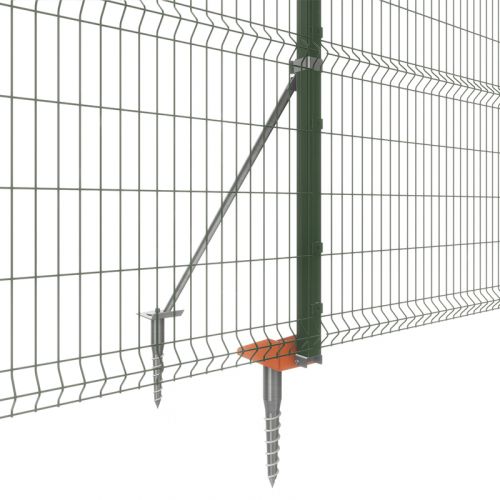

Designed for V-mesh panel fencing this feet locking system holds and locks down V mesh fencing securely using its brace and bracket components. Adaptable for various surface areas such as soil, concrete and asphalt the locking system offers removable and reusable security that is lightweight to transport.
Locking System includes V-Mesh Bracket, Stabiliser Brace, Post U-bracket and a fixing option. Available in 3 fixing options: Soil, Concrete & Asphalt.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Providing compact, safe and secure fence locking this V Mesh Fence Feet Locking System is designed specifically to hold down V-mesh fencing panels in a lightweight, easy-to-use and compact design. Removable and reusable the securing system ensures that V-mesh fence are kept upright regardless of surface area and remain stabilised even under harsh weather conditions e.g. harsh wind currents.
Manufactured for durability and safety the locking system withstands the tough environment of outdoor sites and prevents pedestrians from removing the lock and also provides a zero trip zone on the pedestrians' side. With a low impact on the environment due to its compact nature, preventing animals from nesting the locking system is environmentally friendly.
Product Features:
- Compact & lightweight fence locking system
- Easy to install, remove and reuse
- Anti-trip due to its compact size
- Wind resistant
- Stabilises V-mesh fence panels
Kit Includes:
- V-mesh Bracket
- Post U-bracket
- Stabilising Brace
- Fixing Option - Soil, Concrete & Asphalt
Fixings
Soil Fixing: 2x Flanged Ground Screw - Hot dipped Galvanised Ground Screw
Concrete Fixing: 4x M12 Concrete Screws - High-performance concrete screw for easy installation
Asphalt Fixing: 4x M12 Asphalt Anchors - Metal anchor bolt with internal thread. Combined with chemical anchor resin for high durability
Product Specification
| Product | Surface Finish | Weight | Dimensions |
| V-Mesh Bracket | Zinc Plated | 4.5KG | 310mm x 180mm x 210mm |
| Post U-Bracket | Zinc Plated | 0.5KG | 1520mm x 160mm x 120mm |
| Stabilising Brace | Zinc Plated | 5KG | 1520mm x 160mm x 120mm |
| Flanged Ground Screw (Soil) | Hot Dip Galvanised | 3KG | 530mm x 150mm x 68mm |
| Concrete Screw | Zinc Plated | 0.1KG | M12 |
| Asphalt Anchor | Zinc Plated | 0.1KG | M12 |
HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.
