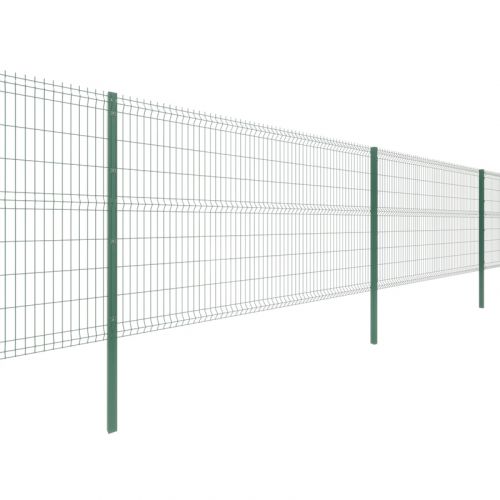

The Safe Mesh 100 fence system provides a ‘light to medium duty’ security fence that is aesthetically pleasing with high through-visibility, helping it to blend into its surrounding. Safe Mesh 100 is a welded mesh panel with horizontal triangular folds that help to form a strong, rigid fence line, particularly suitable for use as a general purpose boundary fence.

Safe Mesh 100 V mesh fencing uses 5mm thick wire to make up 3.03m wide panels. These panels are then clipped onto the 60 x 60 posts, which are sunk into the ground. These panels have reinforcing "V" bars in them in order to strengthen the overall panel.

Posts, Clips & Fixings

The posts and clips provide a fixing system which secures the panels but allows for variations. The system is easy to install and allows the panels to be stepped, helping the fence line to follow the contours of the ground. With the vandal resistant security fixings this post and metal clip system provides a reasonable level of security to any boundary.

Options

Panels can be inverted to create flat top option
Panels can be specified as 2.51m post centres as a special order

Finishes

Mesh panel wire manufactured to BS 4102 and galvanised to BS EN 10244-2:2001 class D, weld strength is 75% of the minimum tensile strength of the wire (tensile range 540-690 N/m2)
Post material manufactured to BS EN 10210-2:1997 and galvanised to BS EN 10346:2009
Panels & Posts are powder coated to BS EN 13438:2005 (min 100 micron)

On-Site Installation

At HERMEQ we offer an On-Site Installation service dedicated to providing top-notch fencing solutions. With a team of skilled and knowledgeable professionals, we guarantee an unparalleled level of expertise in every project we undertake.

See our On-Site Installation site or contact our installation team via phone 0800 888 6262 or email projects@HERMEQ.co.uk for a quote today.

We offer turnkey solutions that cater to the unique requirements of our clients. Whether it's a nationwide deployment or a local project, HERMEQ On-Site Installation ensures a swift and professional service delivery, tailored to meet any project's timeframe.

At HERMEQ, we supply a number of permanent fencing solutions with price calculators available including Palisade Ultra, Palisade Standard, Palisade Railway, Safe Mesh and various Domestic Railing options.
