Forklift Underslung Scoop Bucket

Name: Forklift Underslung Scoop Bucket
SKU: IA3392
Price: 2422.41 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

IA3392

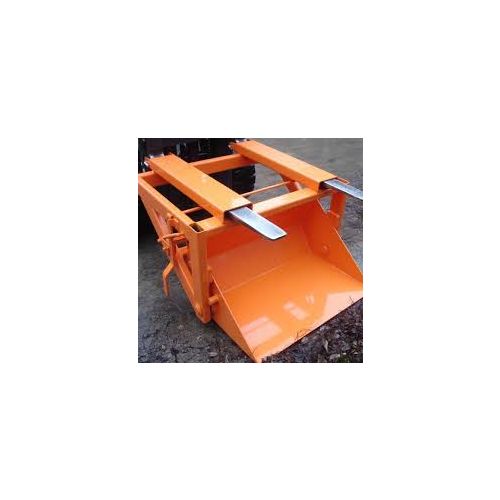

Underslung forklift attachable scoops are an ideal alternative to a loading shovel allowing your forklift to become a more universal asset. The design brings the load closer to the Forklift reducing the load centre and in turn making the combined length of the scoop and truck shorter, which is a benefit when working in tight spaces. This design is ideal for the movement, or loading of, loose materials such as sand, gravel, and top soil. The rugged construction and safety features also make this an ideal choice.

As low as € 2.001,99 € 2.422,41

In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Size Specifications

Capacity	Weight	Bucket Width	Bucket Length	Bucket Height	Nominal Capacity (m3)	C of G
300kg	240kg	990mm	750mm	475mm	0.25	700 - 745mm
600kg	265kg	990mm	1150mm	725mm	0.50	740 - 785mm

Operation

Position the forks to the correct distance apart to locate them into the fork pockets.
Remove the heel pin(s) from the attachment.
Drive the forks into the fork pockets.
Insert fork pocket heel pin(s) directly behind the heel of the fork and attach the safety lynch pin into the hole provided.
The attachment is now ready for use.

Features

A secondary locking mechanism to prevent accidental discharge.
Welded Wear Strip on the front lip of the Bucket.
Bucket release Handle on both sides of the frame.
Maximum fork section 150 x 50 mm at 683 mm centres.
Floor Stand for ease of entry and exit of the fork pockets.
Zinc-plated Heel Pins for safe attachment to the truck.
Painted bright orange for safety.
