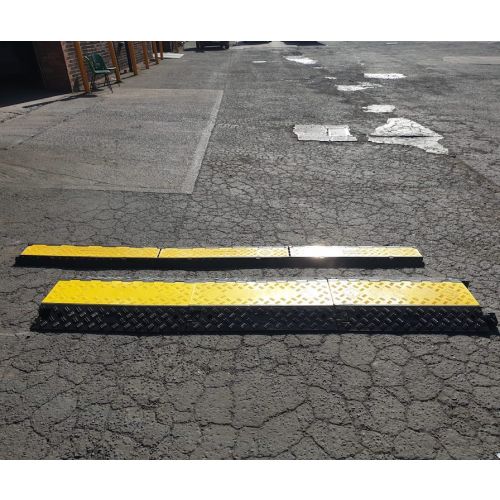

Cable Guard Ramps

Cable Ramps & Cable Guards allow free and easy movement of both pedestrians and lightweight plant and machinery, whilst providing effective protection for cables on site & at events.

Weight loading is largely dependent on the ground conditions on which you put the cable guard ramps, with the cable ramp protectors being able to take more weight on solid firm ground, and less weight on loose ground. However, we broadly advise that our cable guard ramps are able to take the weight of cars, vans and lorries passing over the cable ramps at low speeds.



3 Channel Cable Guard Ramp Specifications

Length: 990mm

Width: 300mm

Height: 45mm

Weight: 8.5kg

Max Axle Weight: 6 Tonnes

Internal Channel Dimensions: 35mm x 35mm

Male & Female Connection with Yellow PVC Flap



5 Channel Cable Guard Ramp Specifications

Length: 890mm

Width: 590mm

Height: 75mm

Weight: 19kg

Max Axle Weight: 12 Tonnes

Internal Channel Dimensions: 60mm x 40mm

Male & Female Connection with Yellow PVC Flap



The material used for both styles of cable guard ramps is a high-quality rubber base with a PVC lid. The guard ramps come with 4 individual securing points if you need to secure them to a hard-standing area.

The simple male & female connection system allows for the quick installation of these cable ramp protectors & the yellow and black finish makes them highly visible to pedestrians and motorists.

HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
