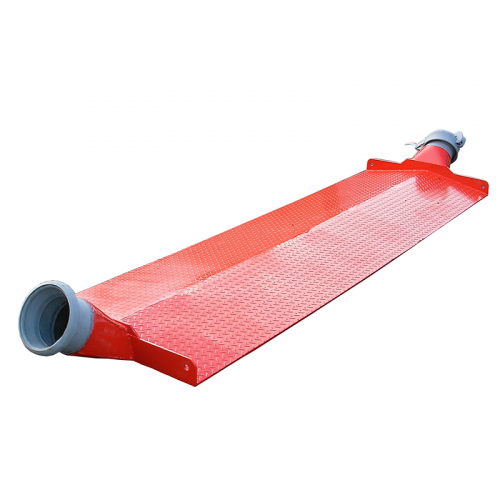

Water/Sewage Pipe Road Ramp

SKU
RC2663

The Water/Sewage Pipe Road Ramp allows you to pump water across a road or pathway while maintaining vehicle access.

As low as € 3.699,30 € 4.476,15
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



The Water/Sewage Pipe Road Ramp enables you to pump liquid across a road or pathway causing minimal disruption to the flow of traffic and maintain pedestrian access. They can be used as single units or linked together in multiples. The Water/Sewage Pipe Road Ramp is suitable for all sized vehicles and has been load tested up to 70 tonnes.



Specification:

Overall Dimensions:3600mm coupling to coupling

Crossing Width & Apex Height: 3010mm x 75mm

Connector Type: 4" 6" & 8" - Bauer, Flange, Storz, Cardan

Maximum Load Weight: 70 Tonnes

Maximum Flow Rate: 500m3/h

Weight: approx 200kg



Features

  • Cost savings in eliminating the need to bury pipes in the highway or erecting costly overhead gantries.
  • Triangular profile provides ultimate strength - no more crushed hoses and leaks.
  • Load tested to 70 tonnes - allows any-vehicle access to your site.
  • Does not block - even on the heaviest sewerage jobs.
  • Steel plate construction
  • Available in 4" 6" 8" - Bauer / Flange / Storz / Cardan Coupling - can be adapted to connect to any hose type/fitting.
  • Lifting eyes allow easy on-site manoeuvrability.
  • Bolt holes allow the Pipe Road Ramp to be secured to the road surface.
  • Low profile - the apex is just 75 mm (3") above the road surface, allowing passage of all types of traffic and pedestrians with minimal disruption.
  • Crossing width of 3010 mm for the Road Ramp and 1500 mm for the Pedestrian Ramp.

HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
