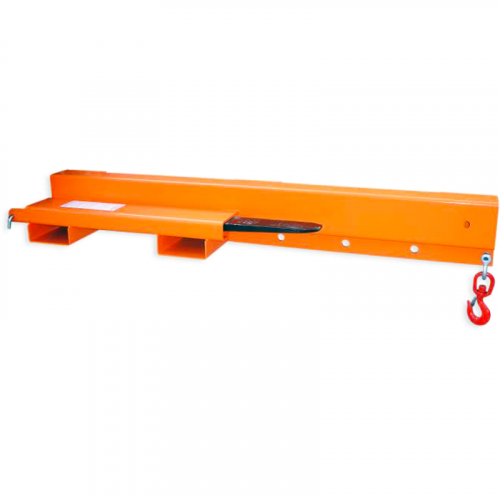

Low Profile Jib Attachment

SKU
IA7940

Low Profile Jib Attachments are durable and long-lasting forklift and telehandler attachments suitable for heavy-duty use.

As low as € 791,78 € 958,05
In stock

Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.



Low Profile Jib Attachments have been designed to make difficult load relocation tasks easier, safer, and quicker. With a variety of potential lifting centres, this particular Jib Attachment is an industry-leading Jib perfect for use in multiple industries.

A Jib with plenty of positive features that allow for the safe and easy transportation of bulk loads, the versatility of the Low-Profile Jib has seen the attachment commonly used in warehouses, on construction sites, and in retail environments.

The presence of five different load centres and a swivel hook provides alternative lift locations on the attachment at different max load capacities. Although these load capacities change they always remain at a premium level, still providing the user with the capabilities to complete difficult lifting tasks.

Each of the five Low-Profile Jib Attachment variations has five different load centres at 500 mm, 1000 mm, 1250 mm, 1500 mm, and 1750 mm. Each product model has differing maximum load limits with the maximum load capacity of the Low Profile 4000 kg model taken from use at the 500 cm centre.

Versatile enough to be used with most forklifts and telehandlers, the Low Profile Forklift Jib Attachment has a maximum fork centre of 150 mm x 50 mm at 281 mm centres.

Once installed in place, the reliable and extremely durable zinc-plated heel pins are used to securely attach the Heavy Duty Jib Attachment in place, allowing the Jib to perform without risk of coming loose.

Fitted with a four-way pocket entry for ease of storage, the easy to use and easier to store Jib even makes the process of not being in use easier, allowing the attachment itself to be easily stored and relocated.

Taking into consideration the high importance of health and safety in the workplace, the Low Jib Attachment has been finished in a bright orange painted finish to remain as visible as possible to all those in the workspace.
Incredibly easy to use, the Low Profile Jib should always be given a risk assessment prior to use. Any damages or concerns should be reported and repaired immediately before any usage occurs.

Once the risk assessment has been completed, begin by positioning the forks on the forklift or telehandler to the correct positioning to enter the Low-Profile-Jib before removing the zinc plated heel pins.

The driver of the vehicle should then drive forwards, driving the forks of the vehicle into the fork pockets of the Jib Attachment. Once inserted, the zinc-plated heel pins should be reinserted directly behind the heel of the fork using the safety lynchpin in the hole provided.

Continue by positioning the swivel hook and shackle at the appropriate lifting point, ensuring all components are secure and in the correct location. The Jib can now be used to begin lifting.

In order to get the most out of the Low Profile Jib and to experience a longer product life, regular maintenance procedures should be followed weekly.
The general condition of the Jib should be taken into consideration with weld points, fork pockets, heel pins, and swivel hook and shackle components areas that should be given continuous attention. As mentioned previously, if any damages or concerns are noted during these checks, they should be reported and repaired immediately.

General surface rusting is a common issue with all forklift attachments and can be treated easily with paint, primers, and prohibitory inhibitors.
The Low Profile Jib is certified for up to six months from the date of manufacture. After this date passes, it is the responsibility of the customer to have the product inspected by the relevant authority.

Before use, both the vehicle and attachment should be checked to ensure they are capable of lifting the intended load and that the Jib has been set to the correct lifting point.

Heel pins and moveable components should always be checked to ensure they are secure and being used in the correct manner before use.
Angular lifts, sideways lifts, and shock loading should always be avoided as the Jib Attachment has not been designed to hold the set maximum load capacities in that manner.

All specifications of each model are available below, however, if you're struggling to make sense of things or would like some advice regarding your potential purchase, give the HERMEQ team a call.



Delivery:

Delivery times can vary and are stock-dependent. Average delivery times are between 24 hours and 5 working days.

If you have any questions please call us on 0121 725 2338.

HERMEQ stock a wide range of Scaffolding Equipment, Building Supplies, Lifting Equipment & PPE conforming to all required safety specifications and regulations. Lightweight, easy to use & made with premium quality materials in the UK!

Need any help? Contact HERMEQ Today.

Contact our team via email sales@hermeq.nl or use our live chat feature between 8:00am & 17:00pm for help discovering our range.

Low Profile Jib 1000 kg

  • Max load capacity at 500 mm: 1000 kg
  • Max load capacity at 1000 mm: 700 kg
  • Max load capacity at 1250 mm: 500 kg
  • Max load capacity at 1500 mm: 400 kg
  • Max load capacity at 1750 mm: 250 kg
  • Weight: 75 kg
  • C of G: 750 mm



Low Profile Jib 1500 kg

  • Max load capacity at 500 mm: 1500 kg
  • Max load capacity at 1000 mm: 1100 kg
  • Max load capacity at 1250 mm: 900 kg
  • Max load capacity at 1500 mm: 650 kg
  • Max load capacity at 1750 mm: 450 kg
  • Weight: 80 kg
  • C of G: 750 mm



Low Profile Jib 2000 kg

  • Max load capacity at 500 mm: 2000 kg
  • Max load capacity at 1000 mm: 1600 kg
  • Max load capacity at 1250 mm: 1200 kg
  • Max load capacity at 1500 mm: 900 kg
  • Max load capacity at 1750 mm: 600 kg
  • Weight: 89 kg
  • C of G: 750 mm



Low Profile Jib 3000 kg

  • Max load capacity at 500 mm: 3000 kg
  • Max load capacity at 1000 mm: 2100 kg
  • Max load capacity at 1250 mm: 1600 kg
  • Max load capacity at 1500 mm: 1100 kg
  • Max load capacity at 1750 mm: 850 kg
  • Weight: 107 kg
  • C of G: 750 mm



Low Profile Jib 4000 kg

  • Max load capacity at 500 mm: 4000 kg
  • Max load capacity at 1000 mm: 3200 kg
  • Max load capacity at 1250 mm: 2500 kg
  • Max load capacity at 1500 mm: 1900 kg
  • Max load capacity at 1750 mm: 1100 kg
  • Weight: 118 kg
  • C of G: 750 mm
