Visit HERMEQ GermanyMesh Fence Feet Stabilised Locking System
Frequently Bought Together

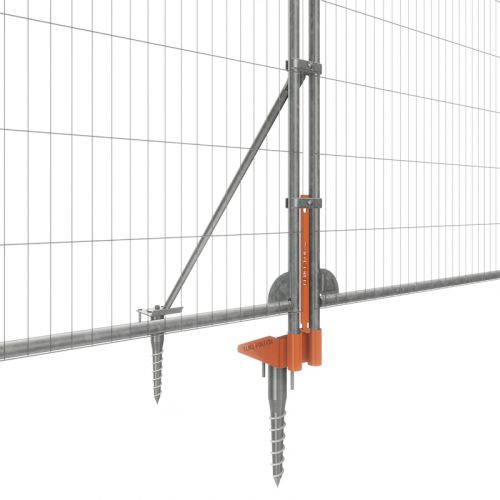

A stabilised fence locking system located at the feet of mesh fence panels. Utilising its stabilising brace this locking system has high wind-resistance and offers secure fence locking for soil, concrete and asphalt. Removable & Reusable the anti-trip locking system prevents accidents due to its compact design.
Locking System includes Fence Bracket, Locking Strap, Stabiliser Brace and a fixing option. Available in 3 fixing options: Soil, Concrete & Asphalt.
Â
This item is also called a Fixed Mesh Panel Locking System or a Fence-Lok Locking System.
Quickest Available Delivery: Quickest Available Delivery: 5 Day Delivery
Stabilised for secure placement of mesh fencing panels this locking system ensures fencing is securely placed down on site. Commonly used on construction sites and outdoor events this locking system is easy to install, remove and reuse with a lightweight design that allows it to be easily transported. Consisting of an open mesh bracket, locking strap, stabilising brace and fixing (soil, concrete or asphalt) this easy-to-use locking system is environmentally friendly as wildlife cannot nest on the system.
The fence locking system has a zero trip design on the pedestrian side due to its compact and intricate design. Due to its stabilising brace the locking system is highly wind-resistant, withstanding harsh wind currents.
Product Features:
- Compact & lightweight fence locking system
- Easy to install, remove and reuse
- Anti-trip due to its compact size
- Wind resistant
- Stabilises mesh fence panels
Kit Includes:
- Fence Bracket
- Locking Strap
- Stabilising Brace
- Fixing Option - Soil, Concrete & Asphalt
Fixings
Soil Fixing: 2x Flanged Ground Screw - Hot dipped Galvanised Ground Screw
Concrete Fixing: 4x M12 Concrete Screws - High-performance concrete screw for easy installation
Asphalt Fixing: 4x M12 Asphalt Anchors - Metal anchor bolt with internal thread. Combined with chemical anchor resin for high durability
Product Specification
| Product | Surface Finish | Weight | Dimensions |
| Open Mesh Bracket | Powder Coated | 4.5KG | 290mm x 180mm x 120mm |
| Locking Strap | Powder Coated | 0.5KG | 35mm x 460mm x 5mm |
| Stabilising Brace | Zinc Plated | 5KG | 1520mm x 160mm x 120mm |
| Flanged Ground Screw (Soil) | Hot Dip Galvanised | 3KG | 530mm x 150mm x 68mm |
| Concrete Screw | Zinc Plated | 0.1KG | M12 |
| Asphalt Anchor | Zinc Plated | 0.1KG | M12 |
HERMEQ stock a wide-range of Accessories, Temporary Fencing, Mesh Fencing & Permanent Fencing conforming to all required safety specifications and regulations.
