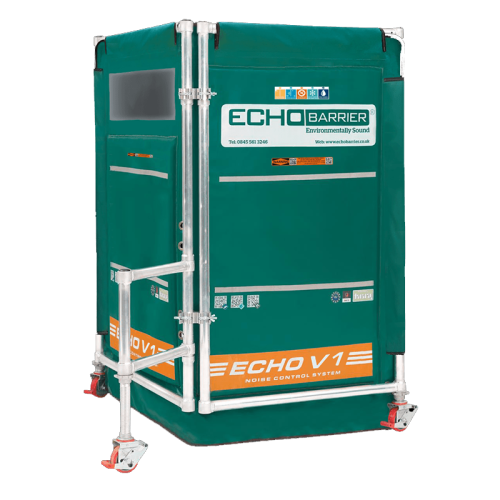

Echo Barrier Acoustic Screen

Name: Echo Barrier Acoustic Screen
SKU: AB113010
Price: 2159.55 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

AB113010

A folding acoustic screen, compact, portable and easily assembled the acoustic screen absorbs and reduces noise. With its unique folding design, it allows a wider acoustic shadow compared to standard fence barriers and its wheels allow for easy portability around site. Fire, water, and temperature resistant the acoustic screen can be easily transported and stored. Temperature resistant from -40° F to 158° F. Reduces up to 38.5dB of noise and absorbs up to 97%. Best used in construction areas with demolition and utilities. Dimensions: 2100 x 2560 x 60mm | Weight: 10KG (acoustic barrier), 17KG (frame)

€ 1.784,75 € 2.159,55

Quickest Available Delivery: Up To 3 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

A compact acoustic barrier weaved on a foldable screen frame that adjusts accordingly to the angle needed. Much more effective compared to standard fence barriers the Echo barrier acoustic screen can be placed very close to noise sources due to its lightweight yet durable frame and absorbs up to 97% of noise and reduces up to 38.5dB.

Consisting of an acoustic barrier, with a durable frame with wheels and feet for portability the acoustic barrier is made up of 3 layers. The outside waterproof PVC layer has the most mass that allows for maximum noise mitigation whilst displaying a splendid visual. The middle layer is a noise-absorbent composite that is both lightweight and highly effective at noise absorption. The third layer is a waterproof breathable membrane that lets in sound to be absorbed by the middle layer composite whilst keeping water out.

The echo barrier acoustic screen is fire, water and weather resistant and works well even under extreme weather conditions from -40° F to 158° F.

Note: Always place the barrier with the black mesh side facing the source of the noise.

Product Features:

Reduces noise up to 38.5dB
Absorbs up to 97% of noise
Fire, water, dust, UV and cold resistant
Lightweight and durable build
Foldable design for wider acoustic shadow
Portable, lightweight and durable

Product Specifications

Height

Width

Thickness

Weight

Barrier: 1940mm

Frame w/ wheels: 2100mm

Frame without wheels: 1930mm

2560mm

60mm

Barrier: 10KG

Frame: 17KG

Wheels: 2KG | Feet: 1KG

Folded Dimensions	1840 x 1240 x 150mm (L x W x D)
Max Noise Reduction (Lab tested)	38.5dB
Max Noise Absorption (Lab tested)	97%
Water Resistant Test Standard	BSEN 60529:1992 IPX6 / IPX9
Fire Resistant Test Standard	BS 7837-1996
Dust Resistant Test Standard	BSEN 60529:1992
Cold Resistant Test Standard	BSEN 60068/2/1:2007 (-40 degrees)
UV Resistant Test Standard	5 Years
