Echo Barrier Fence Extension

Name: Echo Barrier Fence Extension
SKU: AB113009
Price: 461.36 EUR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Frequently Bought Together

SKU

AB113009

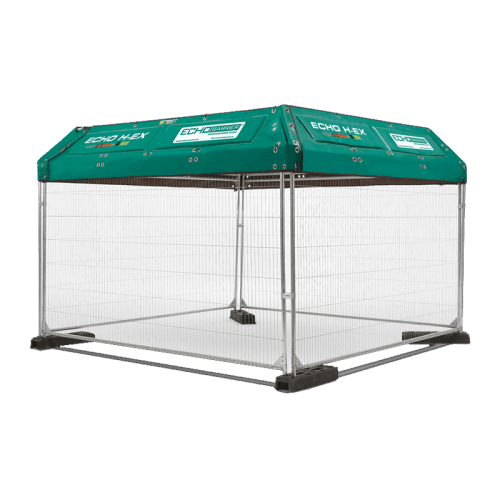

A noise absorption and reduction barrier for vertical or overhead noise control. Designed to go on top of fencing or generators taller than 1.5m this durable and lightweight acoustic barrier fence extension can withstand harsh environments with its fire, water, dust and weather resistant properties. Reducing noise up to 38.5dB and absorbing up to 97% of noise the extension can be installed within 1 minute by 2 people. The barrier fence extension consists of an acoustic barrier segment mounted on a pre-galvanised steel frame. Dimensions: 502 x 3500mm | Weight: 5.6KG (acoustic barrier), 12KG (frame).

€ 381,29 € 461,36

Quickest Available Delivery: Up To 3 Day Delivery Final shipping costs and times are calculated at checkout. Shipping address may affect available delivery methods & times.

Details

Providing and supporting overhead fencing and generators with noise reduction and absorption this acoustic fence extension barrier sits on top of frames to give vertical and overhead noise control. Best used on smaller enclosed areas on ground taller than 1.5m the acoustic fence barrier can be used protect both workers and pedestrians from loud noises and absorbs up to 97% of noise in all directions.

Consisting of an acoustic barrier segment mounted on a pre-galvanised steel frame the echo barrier fence extension is easy to install, requiring only 2 people to set it up within 1 minute due to its lightweight build of 12KG. Despite its lightweight frame the fence extension is highly durable and has fire, water, dust and UV resistances to enhance the performance of the barrier.

The barrier consists of 3 layers, a waterproof outer layer made of high-quality PVC that is extremely durable and achieves maximum noise mitigation due to its mass. The middle layer consists of a lightweight noise-absorbing composite. The final layer is a waterproof breathable mesh membrane that lets in sounds be absorbed by the inner composite whilst keeping water out.

Product Features:

Reduces noise up to 38.5dB
Absorbs up to 97% of noise
Fire, water, dust, UV and cold resistant
Lightweight and durable build
Used above ground taller than 1.5m

Product Specifications

Height	Width	Weight
Frame: 502mm, Mesh: 454mm	3500mm	Frame: 12KG, Mesh: 5.6KG

Max Noise Reduction (Lab tested)	38.5dB
Max Noise Absorption (Lab tested)	97%
Water Resistant Test Standard	BSEN 60529:1992 IPX6 / IPX9
Fire Resistant Test Standard	BS 7837-1996, ASTM E84
Dust Resistant Test Standard	BSEN 60529:1992
Cold Resistant Test Standard	BSEN 60068/2/1:2007 (-40 degrees)
UV Resistant Test Standard	5 Years

HERMEQ stock a wide-range of Crowd Control Barriers, Traffic Barriers, Rope Barriers & Expandable Barriers conforming to all required safety specifications and regulations. Lightweight, easy to use & made with premium quality materials in the UK!
