Echo Barrier Generator Enclosure

Name: Echo Barrier Generator Enclosure
SKU: AB113011
Price: 2355.87 EUR

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Gerelateerde producten

Artikelnummer

AB113011

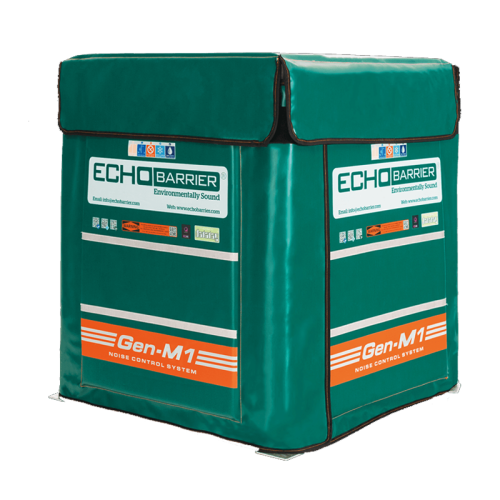

A high performing portable acoustic barrier enclosure for small generators and power units that absorbs and reduces noise. Designed for easy deployment, storage and portability the echo barrier generator enclosure is made from a lightweight aluminium frame. The enclosure can be configured to be fully or partially closed or as a screen, depending on the situation. Reduces up to 38.5dB of noise and absorbs up to 97%. Fire, water, and weather resistant from -40° F to 158° F. Dimensions: 1250 x 1050 x 1050mm (H x W x L) | Total Weight: 25.5KG

€ 1.947,00 € 2.355,87

Snelst mogelijke bezorgtijd: Up To 3 Day Delivery Bezorgkosten worden berekend zodra je de postcode en verzendadres invult bij het bestelproces. Het verzendadres kan mogelijk de bezorgkosten en levertijd veranderen.

Details

Providing quality noise reduction and absorption the echo barrier generator enclosure ensures that noise levels from small generators and power units are kept to a minimum utilising the composite membrane inside the acoustic barrier to both absorb and reduce the output noise. Best used on construction sites where loud noises are present the generator enclosure can be adjusted as a screen or partially or fully enclosed to adjust the situation.

The generator enclosure consists of a lightweight aluminum frame with 2 equal parts and acoustic barriers – 1 roof section and 2 side sections. Put together the frame houses the generators inside, hiding them both visually and sonically.

The acoustic barrier components consist of 3 layers. The outside waterproof PVC layer has the most mass that allows for maximum noise mitigation whilst displaying a splendid visual. The middle layer is a noise-absorbent composite that is both lightweight and highly effective at noise absorption. The third layer is a waterproof breathable membrane that lets in sound to be absorbed by the middle layer composite whilst keeping water out.

These components are also fire, water, dust and weather resistant, operating well even in extreme temperatures from -40° F to 158° F. The UV resistance allows the enclosure to keep its brilliant visual without diminishing performance.

Product Features:

Reduces noise up to 38.5dB
Absorbs up to 97% of noise
Fire, water, dust, UV and cold resistant
Can be used as a screen, partially or fully enclosed
Portable, lightweight and durable
Hides generators and power units both visually and sonically

Note: Always place the barrier with the black mesh side facing the source of the noise.

Product Specifications

Height

Width

Weight

1250mm

1050mm

Barrier: 13KG

Frame: 12.5KG

Total Weight: 25.5KG

Max Noise Reduction (Lab tested)	38.5dB
Max Noise Absorption (Lab tested)	97%
Water Resistant Test Standard	BSEN 60529:1992 IPX6 / IPX9
Fire Resistant Test Standard	BS 7837-1996
Dust Resistant Test Standard	BSEN 60529:1992
Cold Resistant Test Standard	BSEN 60068/2/1:2007 (-40 degrees)
UV Resistant Test Standard	5 Years

HERMEQ stock a wide-range of Crowd Control Barriers, Traffic Barriers, Rope Barriers & Expandable Barriers conforming to all required safety specifications and regulations. Lightweight, easy to use & made with premium quality materials in the UK!
