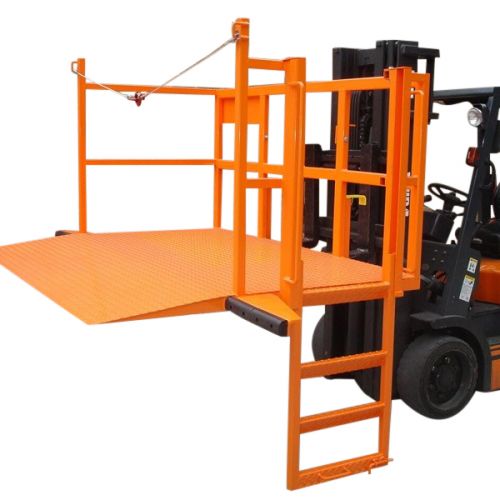

Rolcontainer Heftruckhijs
Gerelateerde producten
Artikelnummer
IA3385
Deze platformen zijn speciaal ontworpen voor het veilig laden en lossen van rolcontainers.
€ 3.220,66 € 3.897,00
Standaard Kenmerken
- Lowerable ladder for safe access for persoonsnel
- Rubber buffered wings to limit entry into rear of vehicle
- Retention rope to minimize cage movement
- Maximum fork section 100 x 45 mm at 1000 mm centres
- Painted bright orange for safety
Operation
- The product must be positioned on level ground.
- Position the forks to the correct distance apart to locate into fork pockets.
- Drive forks fully into fork pockets.
- Unlatch the safety kettings and re-couple to keep bracket.
- Load the load lifter with 2 or 3 cages (dependent upon type of cage).
- Re-attach the safety kettings.
- Lift the load lifter so that the two retaining brackets (Geel in colour) fully engage with the forklift carriage.
- Apply required back tilt of the forklift mast.
- Proceed to the open lorry approaching square on and not angular.
- Lift the Load lifter above the lorry bed height and proceed forward into the lorry so that the side handrails are within the sides of the lorry.
- Realign forklift mast to the verticaal position and lower onto the lorry bed ensuring that the retaining brackets are still engaged to the forklift carriage.
- Unlatch the safety kettings and re-couple to keep bracket and remove the cages
- Once empty lift the Load lifter and reverse away for the next operation.
HERMEQ stock a wide range of Handling & Lifting, Vehicle & Container Access, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
