Geotextile Reinforcement Fabric

Name: Geotextile Reinforcement Fabric
SKU: GT7218
Price: 1.57 EUR

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Gerelateerde producten

Artikelnummer

GT7218

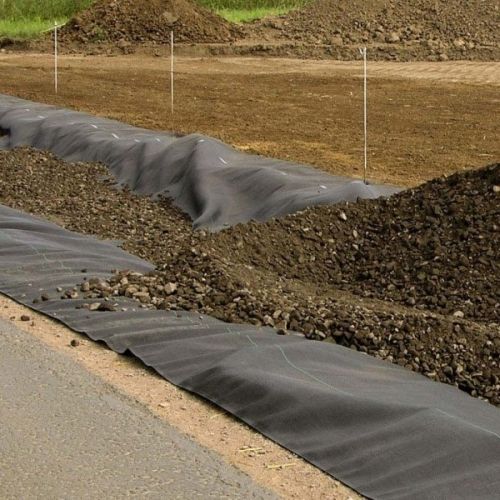

Our Woven Geotextile Reinforcement Fabric has been designed to provide effective reinforcement to weak subgrades, absorbing stresses caused by heavy traffic.

This Geotextile Fabric also helps to control erosion by creating a barrier between the water, soil and rock particles to mitigate the corrosive effect of water on coastlines and riverbanks. This should prevent soil and rock particles from being dislodged and transported back into the sea or river.

All Geotextile Rolls are supplied at 5m wide x 100m long.

Snelst mogelijke bezorgtijd: Snelst mogelijke bezorgtijd: Tot 5 werkdagen Bezorgkosten worden berekend zodra je de postcode en verzendadres invult bij het bestelproces. Het verzendadres kan mogelijk de bezorgkosten en levertijd veranderen.

Details

Our Lotrak range of geotextile fabrics is a cost-effective and eco-friendly solution for construction and civil engineering applications.

Features:

High strength and low elongation provides effective ground reinforcement
Aperture design of geogrid enables aggregate materials to interlock and encourages load dispersal
Erosion control geotextiles help control erosion by creating high-performance barrier
High tensile strength and CBR properties are best suited as reinforcement for soft ground
Manufactured under ISO quality management and construction products regulation

Benefits:

Superior reinforcement
High tensile strength
Superior separation
Excellent soil and aggregate confinement
Excellent lightweight reinforcement

Specifications:

	25R	50R	70R
Tensile Strength (kN/m) MD,CD	26,26	52,52	74,72
Tensile Strength at 5% strain (%) MD,CD	16,16	25,45	55,55
Elongation at Max Load (%) MD,CD	9,9	11,8	9,7
CBR Puncture Resistance (N)	3200	6000	9200
Cone Drop Penetration (mm)	12	8	6
Pore size 90% finer than (microns)	270	210	240
Water Permeability (VI_H500)	0.010	0.014	0.018
Water Flow Rate (l/m²/sec)	10	14	18
Roll Size (Wm x Lm)	5 x 100	5 x 100	5 x 100

HERMEQ stock a wide range of Geotechnics, Geotextiles, Geomembranes & Root Barriers conforming to all required safety specifications and regulations.
