Gravel Paviour

Name: Gravel Paviour
SKU: GT247859
Price: 1.57 EUR

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Gerelateerde producten

Artikelnummer

GT247859

Gravel Paviour Systems consist of interconnecting polymer strips that form pockets to locate and strengthen the fill material which significantly improves the tensile strength to increase the resistance and cohesion of the fill.

This paving provides an excellent permeable solution for protecting tree roots providing a stable and robust platform for vehicle access pathways within the root protection area of the trees to prevent root damage. Each panel has been designed with a cellular structure to reduce vertical load pressure on sub soils and tree roots to prevent damage.

Details

For Tree Protection applications, no-dig solutions are generally preferred and Paviour systems used with separating geotextiles is ideal with only the surface vegetation needing to be removed before installation. In addition to affecting the tree roots in your area, this also saves construction costs and controls surface rutting.

Applications:

Vegetation and protection for steep slopes

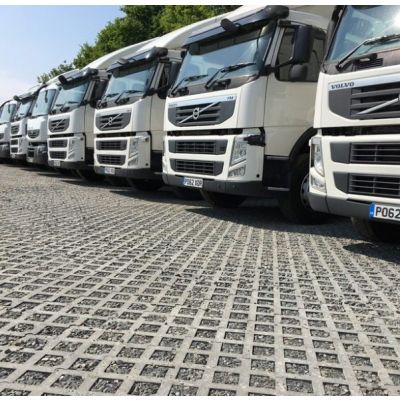

Reinforced grass surfaces for access roads, car parks, fire access
Tree Root Protection
Basal support for block paving under heavy loading
Sand dune stabilisation
Liner protection for lakes and ponds

Features:

Designed with pockets to locate and strengthen the fill material
Cellular matrix of interconnecting polymer strips
Protects vegetation
Can reduce foundation stone thickness up to 50%
Life expectancy of 120 years
Tested in accordance with BS EN 964-1 and BS EN ISO 13426-1-2003

Specifications:

Colour: Black
Material: High Density Polyethylene
Material Thickness: 1.2mm
Panel Size: 6.0mm x 4.0mm
Cell Diameter: 300mm
Cell Height: 75mm, 100mm, 150mm, 200mm
Junction Tensile Strength: 900N, 1200N, 1800N, 2400N
Material Tensile Strength: 22kN/m
Panel Weight, 17kg, 24kg, 36kg, 48kg

HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
