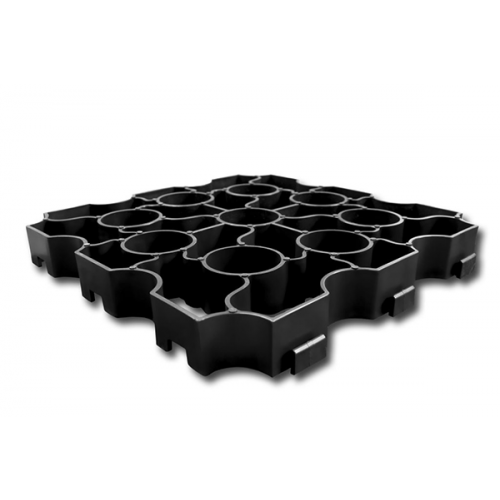

Ground Reinforcement X Grid
X Grids are 100% recycled plastic grid panels which are connected together to form Ground Reinforcement Grid Systems in a variety of areas. With a 25 year lifespan, these durable ground stabilisation grids provide a solid surface for your site and help reduce the risk of potholes, rutting and grass damage.
Snelst mogelijke bezorgtijd: Snelst mogelijke bezorgtijd: Tot 5 werkdagen
They are lightweight but strong and their interlocking features enabling 100sqm to be installed per person each hour.
We have three colours available – black, green and natural – and the colour of the grid chosen should typically complement the colour of the surface you are working with.
There are many locations and settings our ground grid systems are found – driveways, leisure facilities, landscaping routes and paths, parking areas and access routes providing hard standing and road protection for pedestrians and vehicles.
Specifications
Panel Size: 330mm x 330mm x 40mm
Panels / m2: 9 panels
Panel Weight: 574g
Void Ratio: 93%
Operating Temperature: -50 to 90+ °C
Connection: Integral Slot & Peg
Material: Recycled Polypropylene
Wall Thickness: 3mm
Lifespan: up to 25 years
Max Gradient: 12%
Rate of Installation: 100m2 / person per hour
Maximum Vehicle Speed: 15 mph
Made from 100% Recycled Plastic
HERMEQ stock a wide range of Ground Mats, Bog Mats, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
