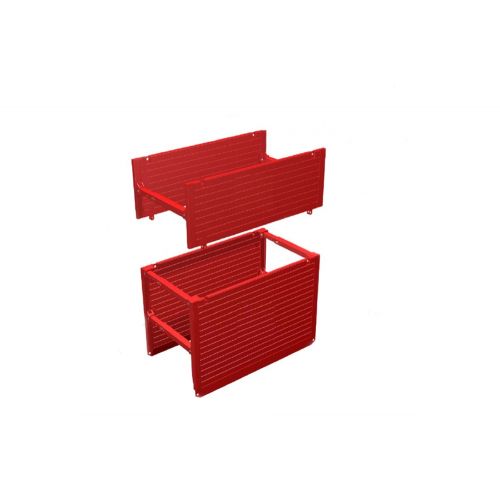

Lightweight Trench Box
Gerelateerde producten
Snelst mogelijke bezorgtijd: Snelst mogelijke bezorgtijd: Tot 5 werkdagen
The maat of the system required to use for your trench ground support depends on the your maximum trench depth requirements & the maat of the pipe sections that you are installing in the ground. Our lightgewicht trench box system is generally most suitable to trench depths of up to 4 meters and trench width of around 3.7 meters if used in conjunction without variable trench box struts.
All of our trench boxes come with strut pins to suit. As standard our ground pins are 28mm dia round bar & 160mm long, they have a shear SWL of 228kN and weigh approximately 1kg.
The lightgewicht trench box system is also incredibly easy to assemble and install. There are two main methods of installing the trench box in place, the first is to use the "dig and push" technique, the other simple approach is to simply dig out the excavation and then lower the lightgewicht trench box into place.
The lightgewicht nature of these trench boxes makes them perfect for smaller excavations and when your site equipment has a low lifting capacity, meaning you don’t have to rely on hiring in expensive machinery to carry out your ground excavation works.
Our lightgewicht trench boxes are manufactured in the UK, using hoog quality British & European steel. When it comes to safety, we don’t want to compromise on quality.
Trench Box Details
| Name | Trench Box Base | Trench Box Extension Top |
| Maat (L x H) | 3000 x 2010 | 3000 x 1100 |
| Max Depth** (m) | 4.19 | N/A |
| Panel Resistance SWL (kN/m2) | 45 | 45 |
| Panel Thick / Gewicht (Tmm / kg) | 60/435 | 60/320 |
| Approx Assembled Gewicht | 970-1330 | 690-870 |
| Intern Trench With (mm) | 605-3625 | 605-3625 |
| Trench Breedte (mm) | 725-3745 | 725-3745 |
| Helderance Below Bottom Struts (mm) | 903 | N/A |
Telescopic Strut Details
| Component | Strut Inner | Strut Outer |
| Specification | 100x100x10 SHS | 120x120x8 SHS |
| Specification | S355 | S355 |
| Axial SWL | 228kN | 228kN |
| Moment SWL | 9.9kNm | 9.9kNm |
| Hole Details | 30mm Holes | 30mm Holes |
| Unit Mass | 27.4kg/m | 26.4kg/m |
HERMEQ stock a wide-range of Trench Sheets, Groundworks, Trench Covers & Road Plates conforming to all required safety specifications and regulations.
